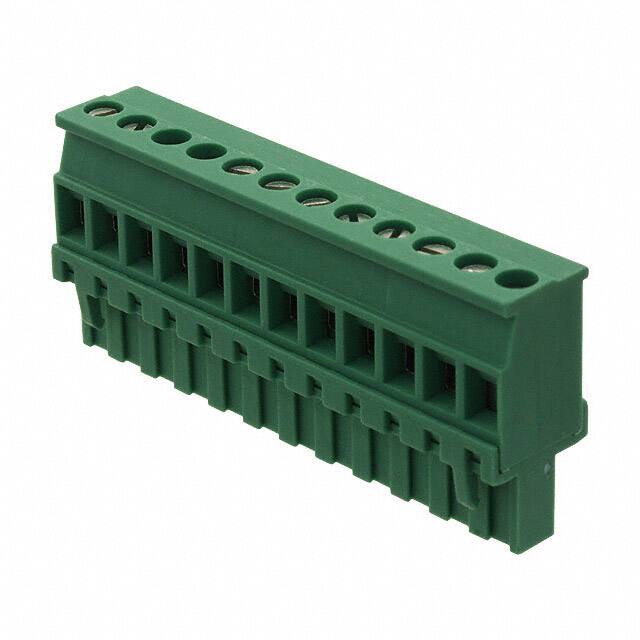

1792113 - Phoenix Contact

Die Bilder dienen nur als Referenz Siehe Produktspezifikationen

Kynix Teil #: KY10-1792113
Hersteller Teil #: 1792113
Produktkategorie: Terminal Blocks - Headers, Plugs and Sockets
Hersteller: Phoenix Contact
Beschreibung: TERM BLOCK PLUG 12POS 90DEG 5MM
Verpackung:
Menge:
Bleifrei-Status / RoHS-Status: Bleifrei / RoHS-konform
Vorlaufzeit: 3(168 Hours)
Spezifikationen
Attribute
Attribute Value
Factory Lead Time
7 Weeks
Contact Plating
Tin
Mounting Type
Cable, Free Hanging
Material
Polyamide
Housing Material
Polyamide (PA), Nylon
Weight
800.136941g
Insulation Materials
Nylon
Voltage - Rated
300V
Voltage-IEC
630V
Voltage Rated
250V
Packaging
Bulk
Series
COMBICON MVSTBR
Published
2010
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Screw
ECCN Code
EAR99
Connector Type
Screw, Socket
Type
Plug, Female Sockets
Color
Green
Number of Rows
1
Gender
Female
Additional Feature
PA, 94V-0
HTS Code
8536.69.40.40
Current Rating (Amps)
15A
Pitch
0.197 5.00mm
Orientation
Straight
Depth
12.6mm
Insulation Height
1.024 26.01mm
Termination Style
Screw - Rising Cage Clamp
Approval Agency
CB, CSA, UL, VDE, cULus
Number of Contacts
12
UL Flammability Code
UL94 V-0
Number of Levels
1
Wire Gauge (Max)
12 AWG
Wire Gauge (Min)
24 AWG
Number of Decks
1
Wire Gauge or Range - AWG
12-30 AWG
Number of Ways
12
Safety Approval
UL
Plug Wire Entry
90°
Wire Gauge or Range - mm²
0.2-2.5mm2
Screw Size
M3
Stripping Length
7mm
Wire Cross Section
2.5 mm2
Current Rating (Max)
12A
Voltage - Supply (Max)
250V
Features
Retention Latches (Wire Side)
Height
26mm
Length
60mm
Width
61mm
REACH SVHC
unknown
RoHS Status
RoHS Compliant
Lead Free
Lead Free
Suche nach Teilenummer:1792113 Enthaltenes Wort ist 4
Telefon Teilenummer Paket Beschreibung
1792113 TERM BLOCK PLUG 12POS 90DEG 5MM
1754643 TERM BLOCK PLUG 12POS STR 5MM
1718067 Pluggable Terminal Blocks 12 Pos 5mm pitch Plug 24-16 AWG IDC
1792621 TERM BLOCK PLUG 12POS 270DEG 5MM
